Angenieux Optimo Ultra 12X S35 & U35 Lens Kit w/ Rear Optics
becomes available?

Want to add more than this item? Head to our waitlist builder

×

Angenieux Optimo Ultra 12X S35 & U35 Lens Kit w/ Rear Optics

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$2328.00

Shipping
Included*

*up to 2nd day air - overnight available

Out of stock. Please call us for availability!

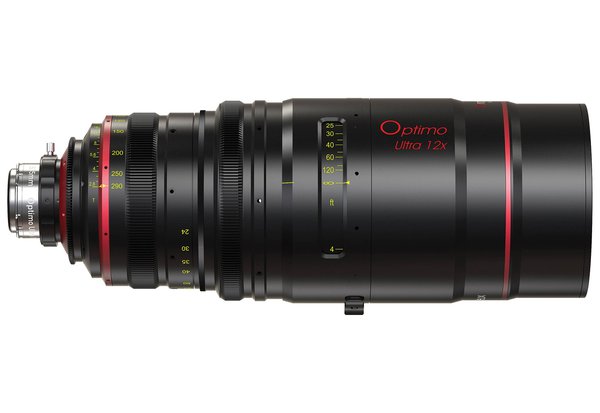

The Angenieux Optimo Ultra 12X S35 & U35 Lens Kit with Rear Optics is a superlative long-range PL-mount zoom for high-end productions. Its design lets you configure the sensor coverage to 31.1mm, 34.6mm, or 46.3mm. Key features include:

  • Versatile 12x zoom for high-end productions

  • S35, U35, and FF/VV optics included

  • Revised optics for high-quality, low-distortion images

  • Sensor coverage configurable to 31.1mm, 34.6mm, or 46.3mm

The Angenieux Optimo Ultra 12x is a special order item. Orders for this product must be placed 4 weeks in advance. Once your order has been placed, you will be contacted by our customer service team for additional information about your upcoming shoot.

 Please note: This lens can be configured in three different versions: S35 (Ø 31.1mm), U35 (Ø 34.6mm) and FF/VV (Ø 46.3mm). Please let us know what camera you are planning to use with your order.

Versatile High-End, Long-Range Zoom. The Angenieux Optimo Ultra 12X S35 & U35 Lens Kit with Rear Optics gives you a 12x zoom range on full-frame PL- and LPL-mount sensors It’s designed for use on high-end productions like features, TV shows, music videos, stage performances, and commercials. This lens’s IRO technology lets you configure it for 31.1mm S35, 34.6mm U35, and 46.3 Full Frame / Vista Vision sensor coverage. You get a 4.01-foot minimum object distance with S35 and U35, and a 5.0-foot minimum object distance with FF/VV.

Revised Optical and Mechanical Design. This lens’s new optical and mechanical design guarantees optimum performance, allowing you to control focal length and focus distance by creating a solid balance between contrast and resolution. Its open aperture—also known as a variable-prime aperture—gives you high-quality, low-distortion images, while its optics include aspherical elements to minimize color fringing. Each lens is constructed with front and rear caps, a focus ring, a zoom ring, an iris ring, a fixed marker, and a fixed marker cover. The ergonomic focus ring boasts 321° scale rotation and over 70 focus marks.

Resources

  • Manual
  • Angular Field of View

    For 22 × 16mm Film:
    S35: 48.2 × 4.4°
    U35: 43.7 × 4.0°
    FF/VV: 32.7 × 2.9°

    For 24.9 × 18.67mm Film:
    S35: 54 × 5.0°
    U35: 49.1 × 4.5°
    FF/VV: 36.9 × 3.3°

    Autofocus

    Manual Focus Only

    Brand

    Angenieux

    Compatibility

    Crop

    Coverage

    S35: 1.2" / 31.1mm
    U35: 1.36" / 34.6mm
    FF/VV: 1.8" / 46.3mm

    Diameter

    6.4"

    Focal Length

    24.0-290.0

    Focusing

    2x Opposite Focus Scales
    320° Angular Rotation of Focus Ring
    208 Teeth, Pitch 32 Gear Drive

    Hood Included

    No

    Image Stabilization

    No

    Iris

    2x Opposite Iris Scales
    90° Angular Rotation of Iris Ring
    132 Teeth, Pitch 32 Gear Drive

    Item Type

    Lens

    Length (Lens Mount to Front)

    S35: 18.6" / 473mm
    U35: 18.9" / 482mm
    FF/VV: 20.6" / 523mm

    Lens Type

    Cine

    Max Aperture

    2.8

    Maximum Diameter

    6.7"

    Minimum Aperture

    22.0

    Minimum Object Distance (M.O.D.)

    S35: 4’ / 1.2m
    U35: 4.01’ / 1.2m
    FF/VV: 5’ / 1.5m

    Mount

    PL Mount

    Weight

    28.1 lbs.

    Zoom

    2x Opposite Zoom Scales
    170° Angular Rotation of Zoom Ring
    183 Teeth, Pitch 32 Gear Drive

    Angenieux Optimo Ultra 12x S35
